Today we have racked the five 14th generation Dell R640 servers and a Dell N4032 switch.

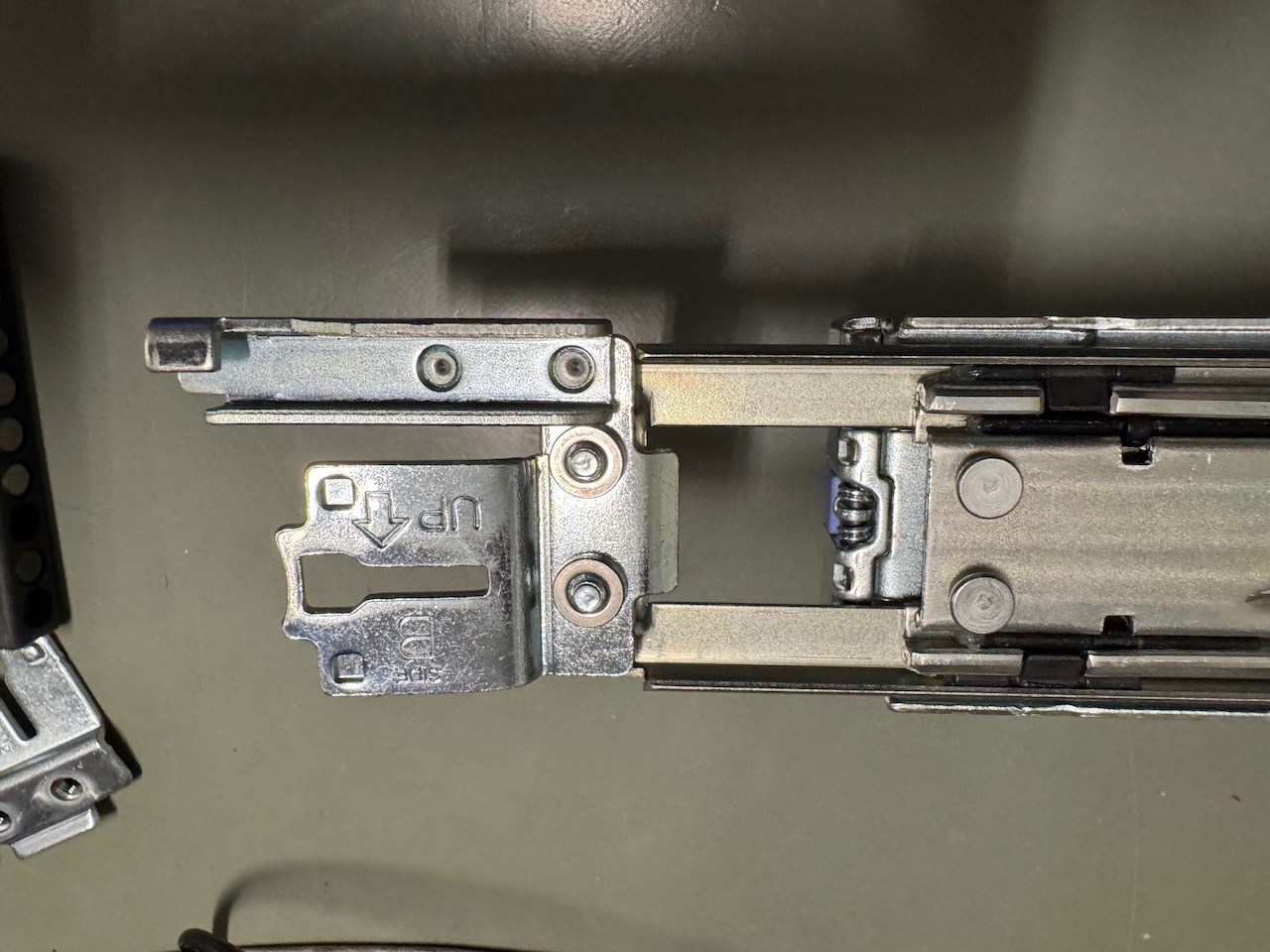

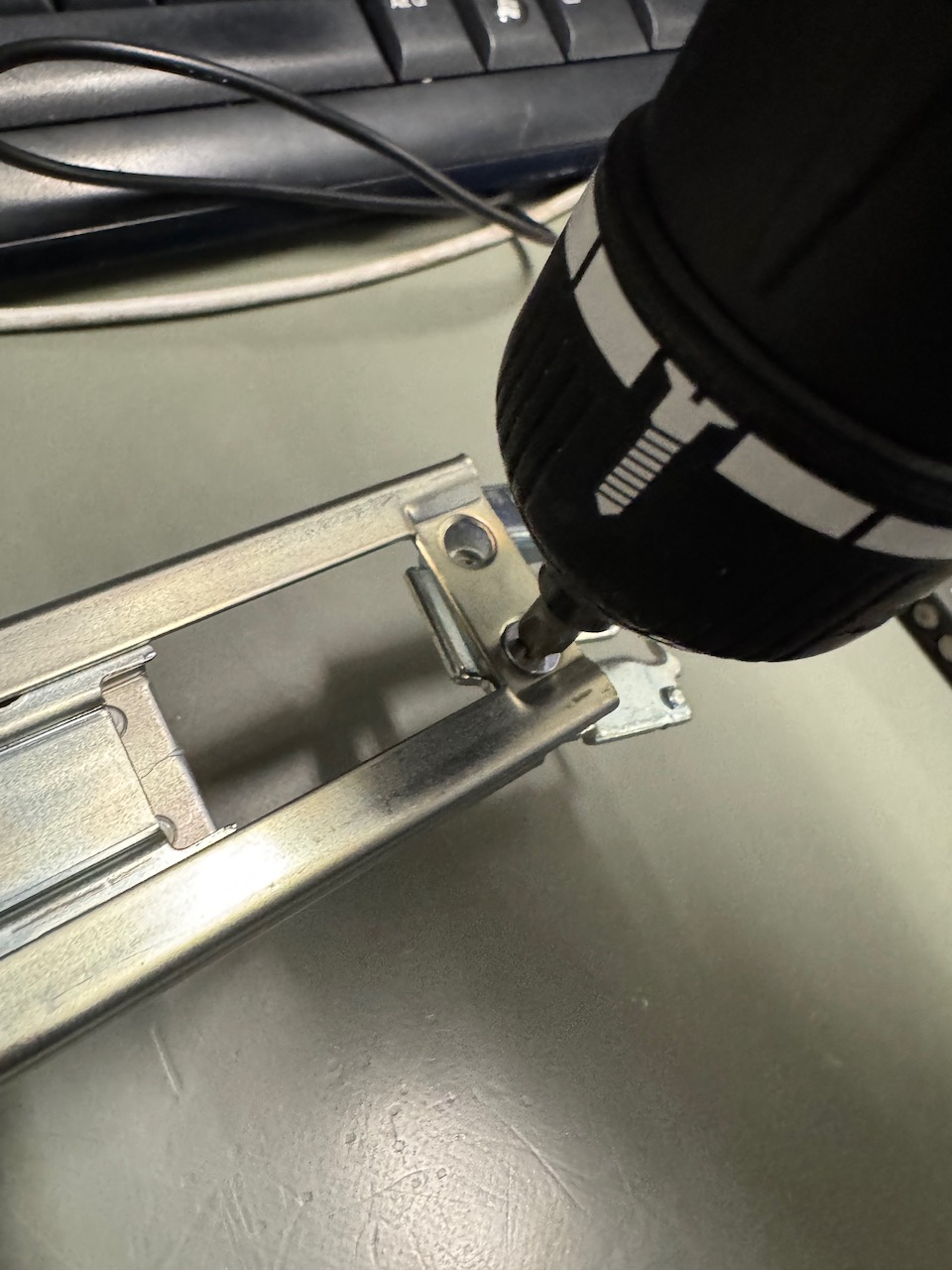

When inspecting the rack rails, I noticed that some of the left-hand rails had an extra tab on them while the others did not. For the first server, I used a rail with a tab only to discover that the tab prohibited the server from being pushed in all the way. The tabs were easily removed but the server needed to be removed from the rack first.

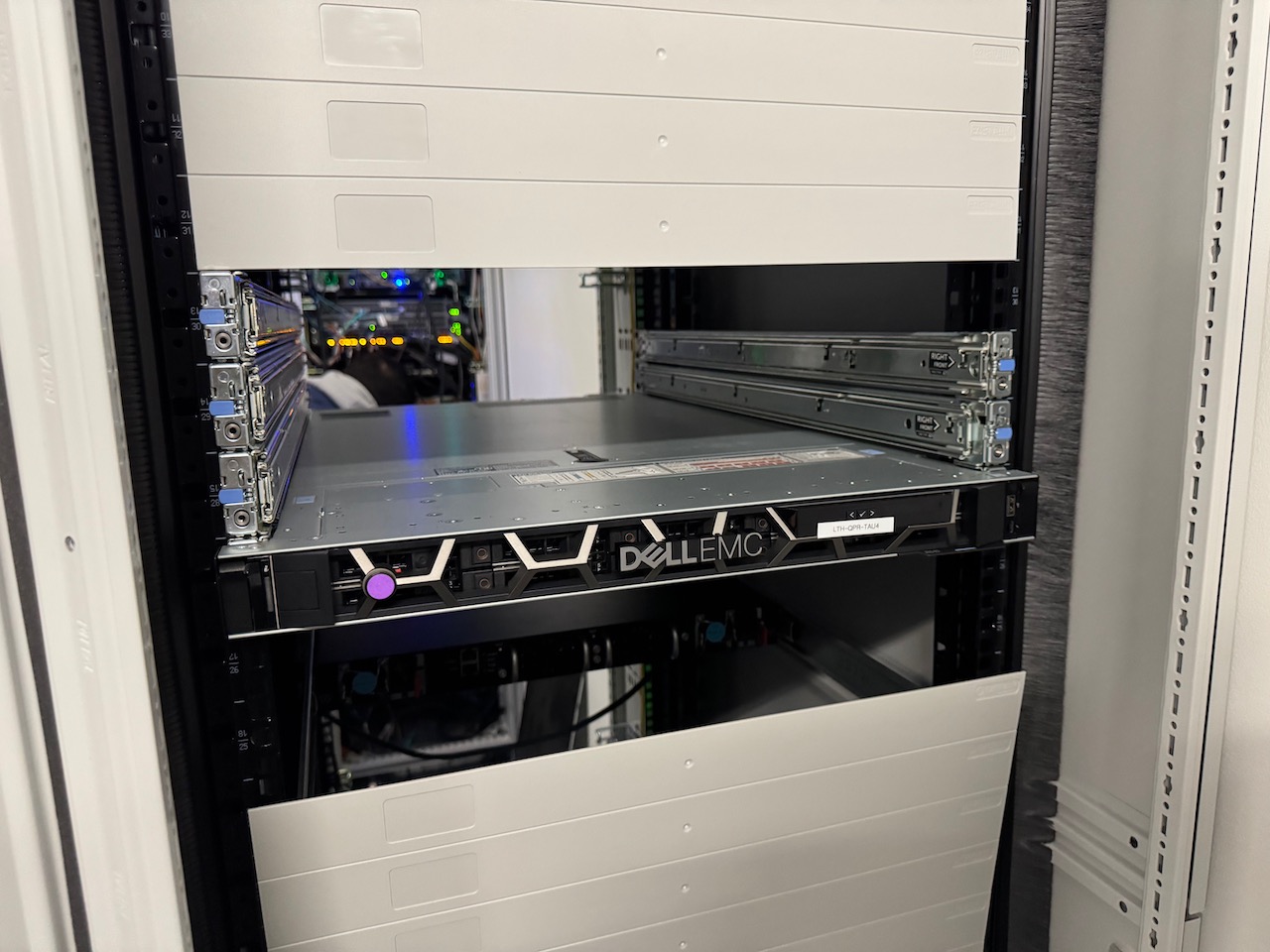

First server installed

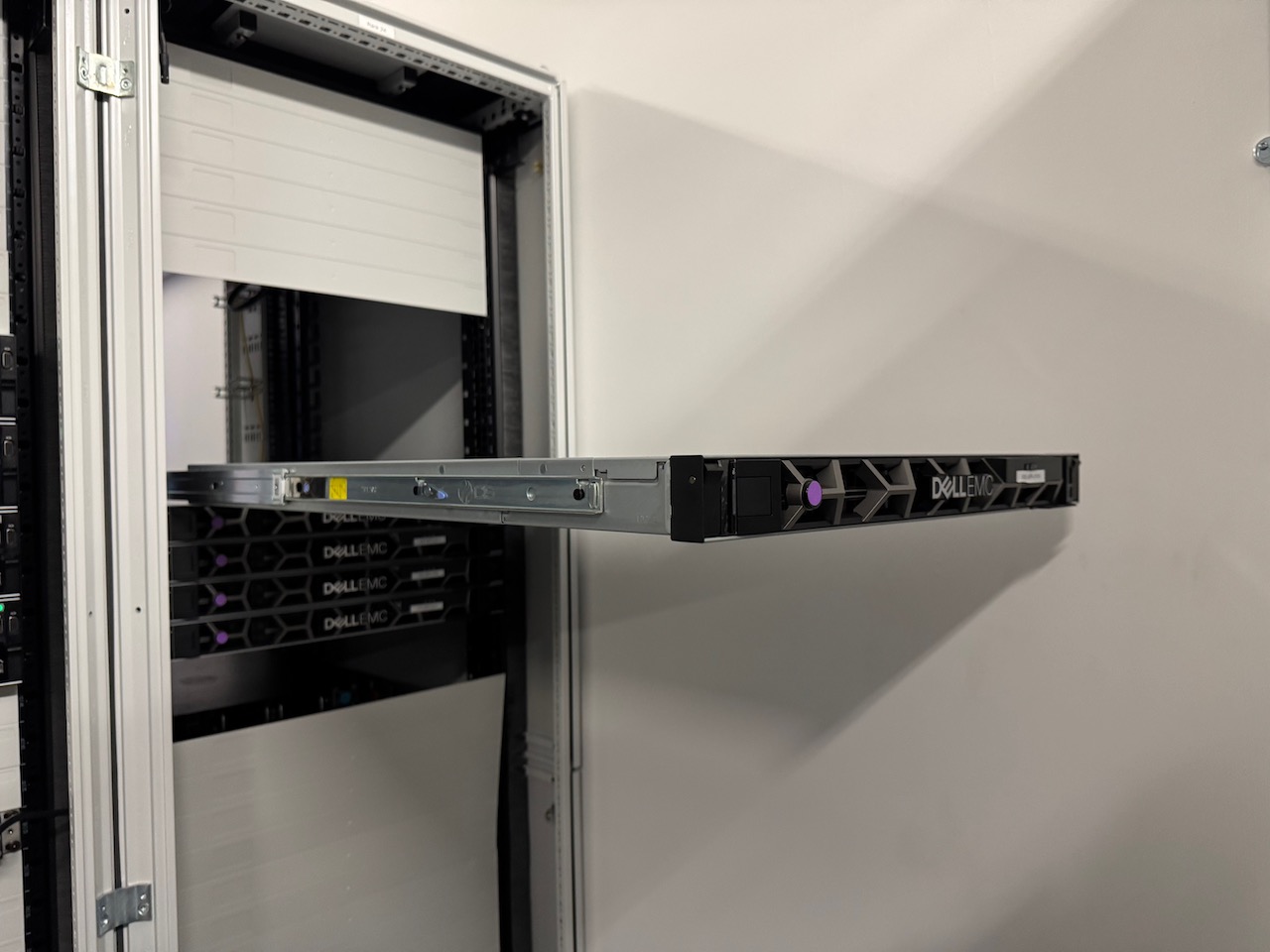

The last server on the rails

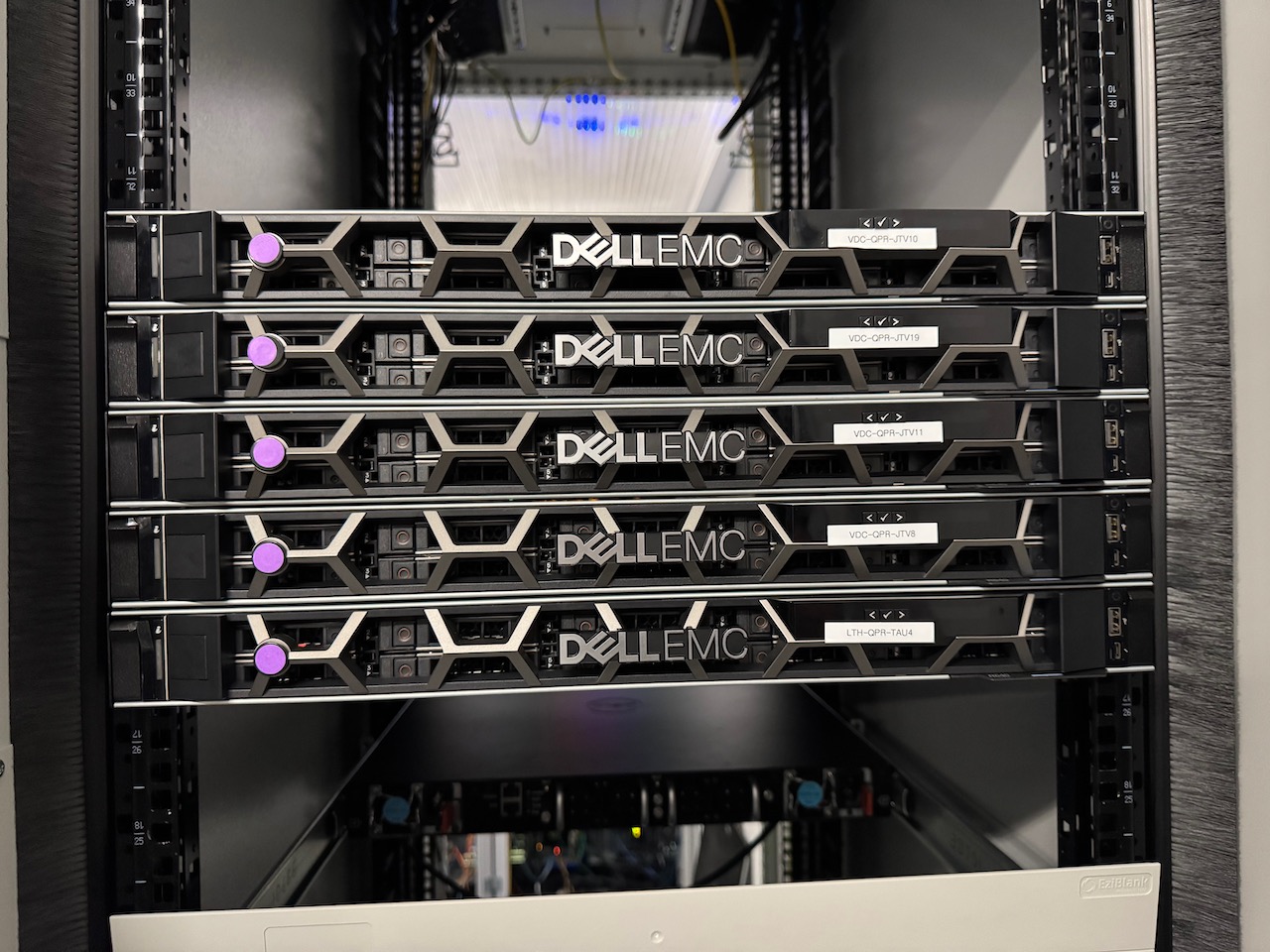

Front view

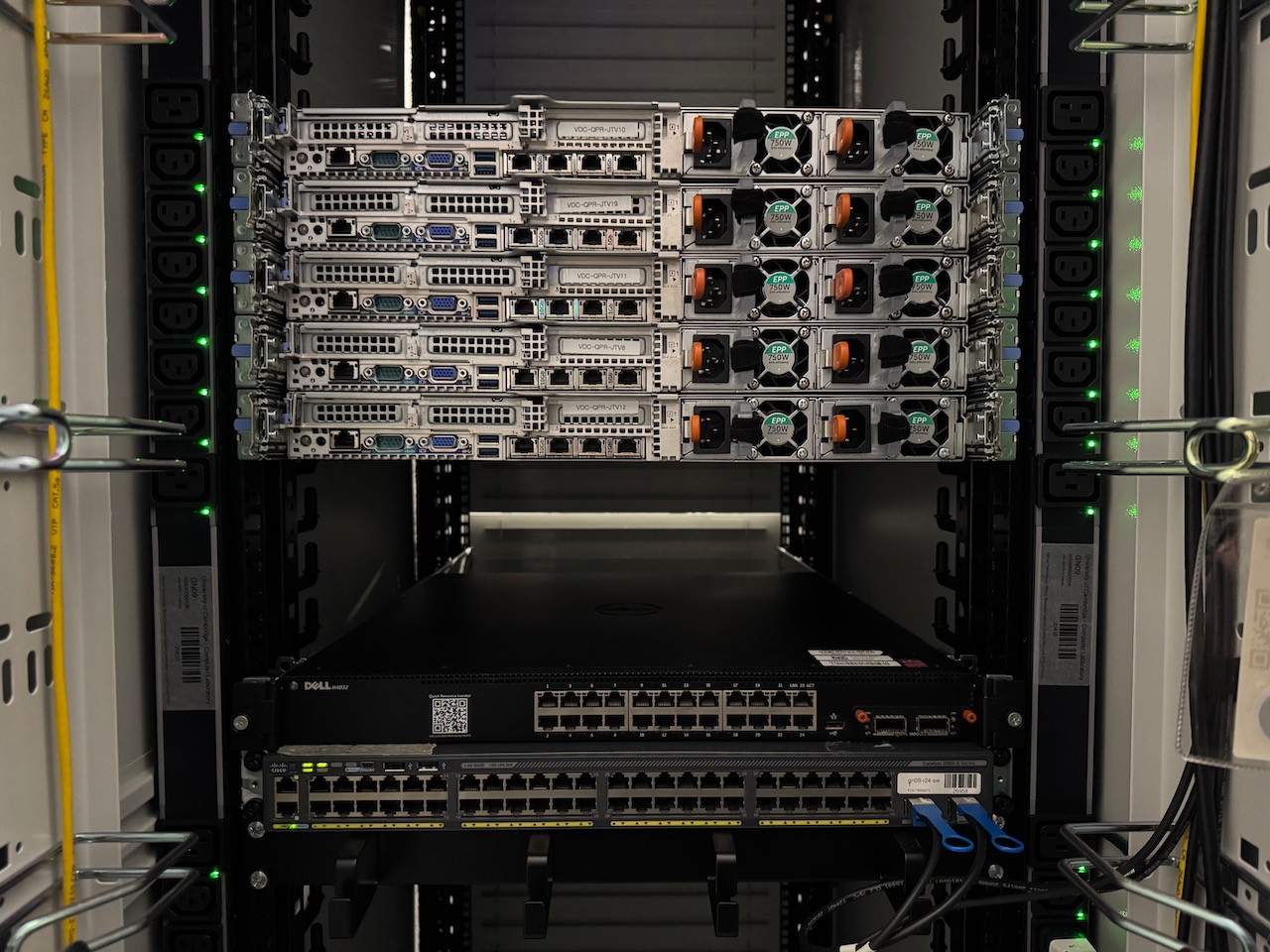

Rear view

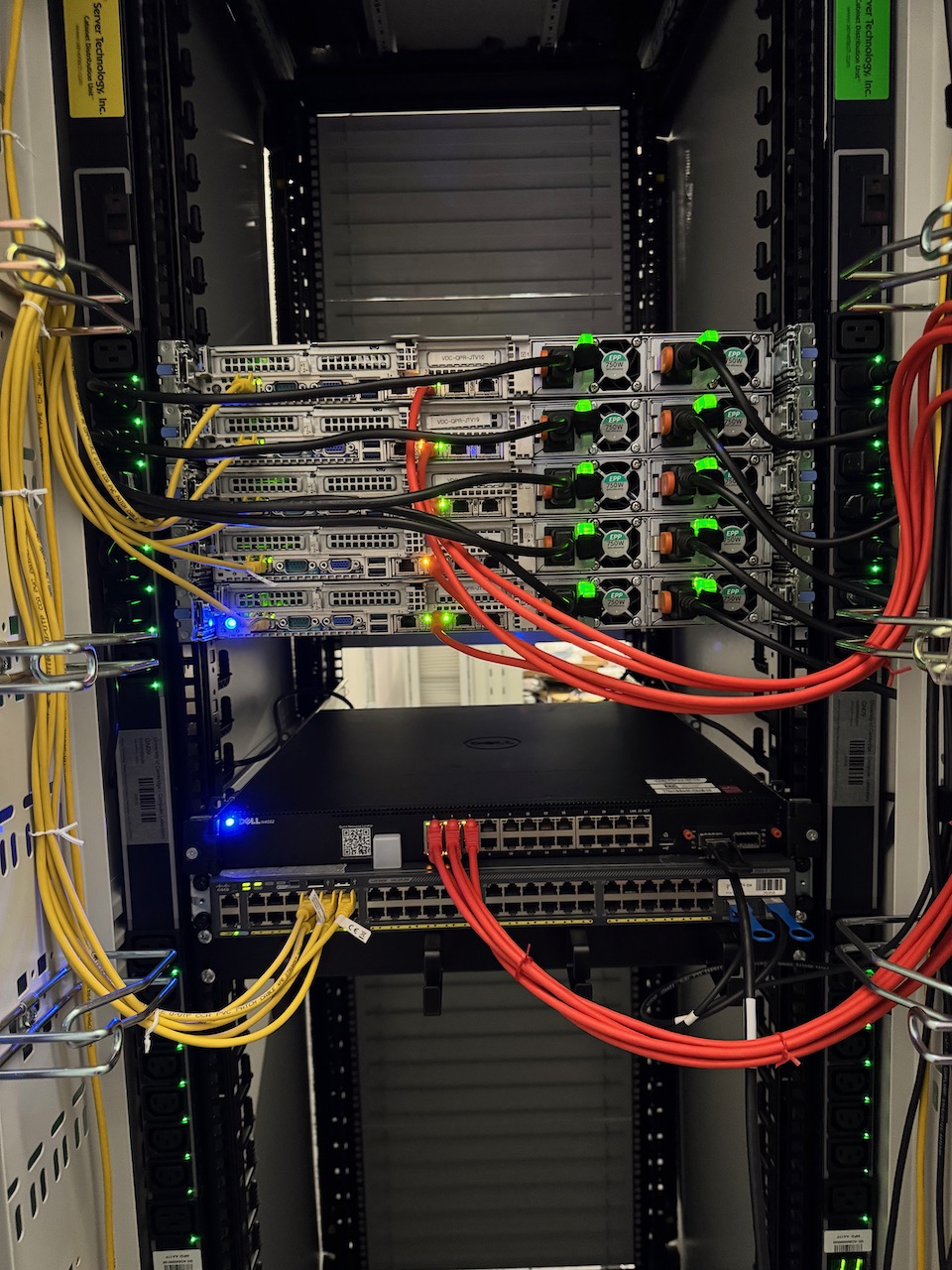

Cabling
- Yellow CAT5 for iDRAC ports
- Red CAT6 for 10GBase-T

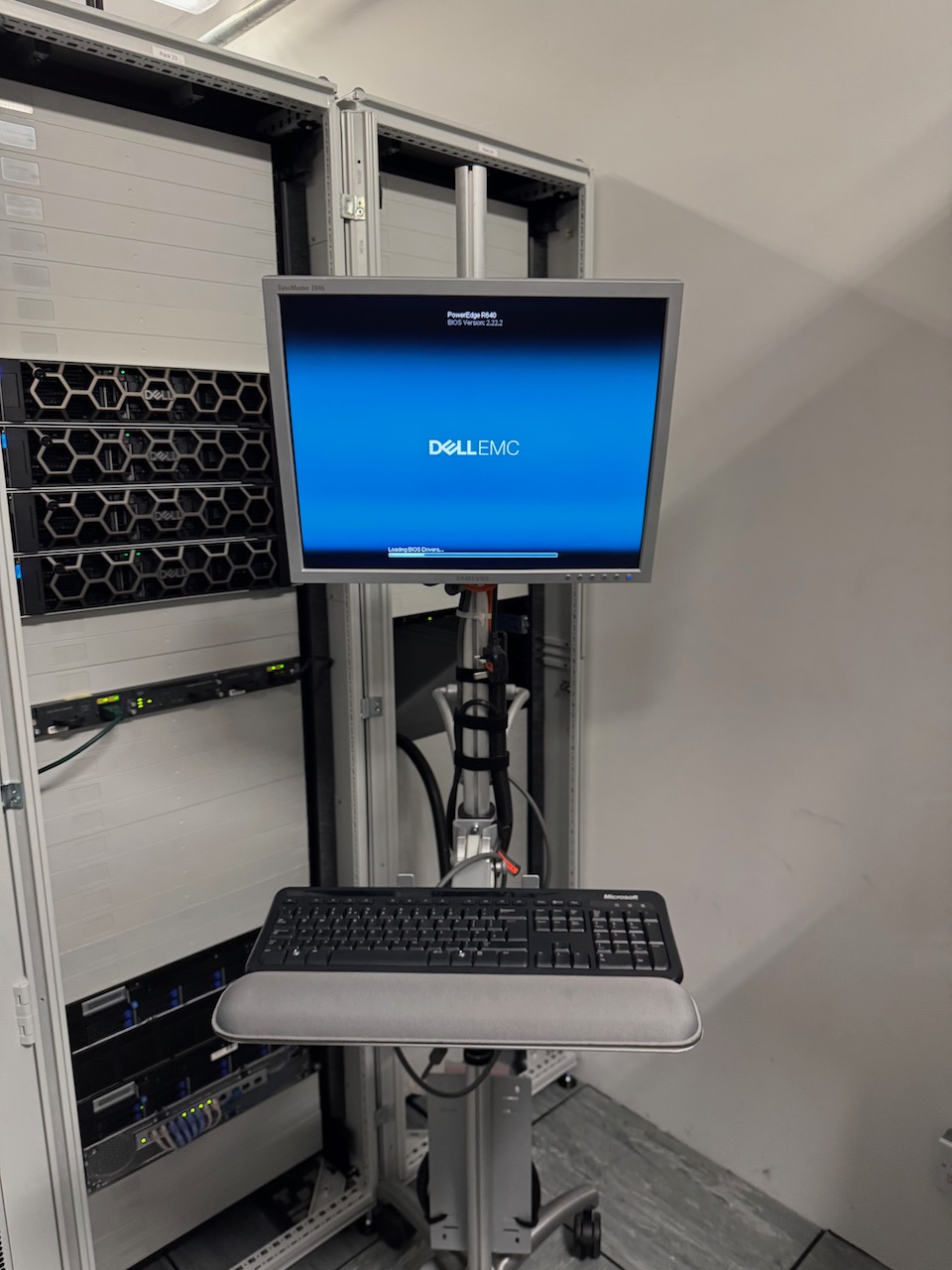

The initial iDRAC configuration was carried out using a crash cart.
The servers are called:
- myrina
- thalestris
- lampedo
- otrera
- antiope
We had some difficulty with the 40G uplink from the switch and we could only get the link to come up by splitting it into 4 x 10G channels, as follows.
console>enable
console#configure
console(config)#interface Fo1/1/1
console(config-if-Fo1/1/1)#hardware profile portmode 4x10g
Then rebooting with do reload. The 4 x 10G uplinks has been configured as an LACP port channel (Po1).
R640 Configuration
Each server has:
- 2 x Intel Xeon Gold 6244 3.6G 8C / 16T
- 8 x 16GB DIMM
- 10 x Kingston 7.68TB SSD
