In addition to the post from last week covering BON in a Box and OCaml Functors, below are some additional notes.
Resilient File System, ReFS
I have previously stated that ReFS supports 1 million hard links per file; however, this is not the case. The maximum is considerably lower at 8191. That’s eight times more than NTFS, but still not very many.
PS D:\> touch foo
PS D:\> foreach ($i in 1..8192) {
>> New-Item -ItemType HardLink -Path "foo-$i" -Target "foo"
>> }
Directory: D:\
Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 07/07/2025 01:00 0 foo-1
-a---- 07/07/2025 01:00 0 foo-2
-a---- 07/07/2025 01:00 0 foo-3
-a---- 07/07/2025 01:00 0 foo-4
...
-a---- 07/07/2025 01:00 0 foo-8190
-a---- 07/07/2025 01:00 0 foo-8191
New-Item : An attempt was made to create more links on a file than the file system supports
At line:2 char:5
+ New-Item -ItemType HardLink -Path "foo-$i" -Target "foo"
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : NotSpecified: (:) [New-Item], Win32Exception
+ FullyQualifiedErrorId : System.ComponentModel.Win32Exception,Microsoft.PowerShell.Commands.NewItemCommand
I had also investigated ReFS block cloning, which removed the requirement to create hard links, and wrote a ReFS-clone tool for Windows Server 2022. This works well until containerd is used to bind mount a directory on the volume. Once this has happened, attempts to create a block clone fail. To exclude my code as the root cause, I have tried Windows Server 2025, where commands such as copy and robocopy automatically perform block clones. Block cloning can be restored by rebooting the machine. I note that restarting containerd is not sufficient.
Removing files and folders on ReFS is impressively fast; however, this comes at a cost: freeing the blocks is a background activity that may take some time to be scheduled.
File system performance with a focus on ZFS
Several EEG interns started last week with this project under my supervision. In brief, we will examine file system performance on the filesystems supported by OBuilder before conducting more detailed investigations into factors affecting ZFS performance.

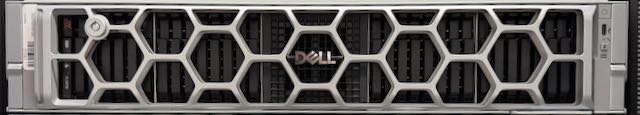

Monteverde
monteverde.cl.cam.ac.uk, has been installed in the rack. It has two AMD EPYC 9965 192-Core Processors, giving a total of 384 cores and 768 threads and 3TB of RAM.
From the logs, there are still some teething issues:
[130451.620482] Large kmem_alloc(98304, 0x1000), please file an issue at:
https://github.com/openzfs/zfs/issues/new
[130451.620486] CPU: 51 UID: 0 PID: 8594 Comm: txg_sync Tainted: P O 6.14.0-23-generic #23-Ubuntu
[130451.620488] Tainted: [P]=PROPRIETARY_MODULE, [O]=OOT_MODULE
[130451.620489] Hardware name: Dell Inc. PowerEdge R7725/0KRFPX, BIOS 1.1.3 02/25/2025
[130451.620490] Call Trace:
[130451.620490] <TASK>
[130451.620492] show_stack+0x49/0x60
[130451.620493] dump_stack_lvl+0x5f/0x90
[130451.620495] dump_stack+0x10/0x18
[130451.620497] spl_kmem_alloc_impl.cold+0x17/0x1c [spl]
[130451.620503] spl_kmem_zalloc+0x19/0x30 [spl]
[130451.620508] multilist_create_impl+0x3f/0xc0 [zfs]
[130451.620586] multilist_create+0x31/0x50 [zfs]
[130451.620650] dmu_objset_sync+0x4c4/0x4d0 [zfs]
[130451.620741] dsl_pool_sync_mos+0x34/0xc0 [zfs]
[130451.620832] dsl_pool_sync+0x3c1/0x420 [zfs]
[130451.620910] spa_sync_iterate_to_convergence+0xda/0x220 [zfs]
[130451.620990] spa_sync+0x333/0x660 [zfs]
[130451.621056] txg_sync_thread+0x1f5/0x270 [zfs]
[130451.621137] ? __pfx_txg_sync_thread+0x10/0x10 [zfs]
[130451.621207] ? __pfx_thread_generic_wrapper+0x10/0x10 [spl]
[130451.621213] thread_generic_wrapper+0x5b/0x70 [spl]
[130451.621217] kthread+0xf9/0x230
[130451.621219] ? __pfx_kthread+0x10/0x10
[130451.621221] ret_from_fork+0x44/0x70
[130451.621223] ? __pfx_kthread+0x10/0x10
[130451.621224] ret_from_fork_asm+0x1a/0x30
[130451.621226] </TASK>
