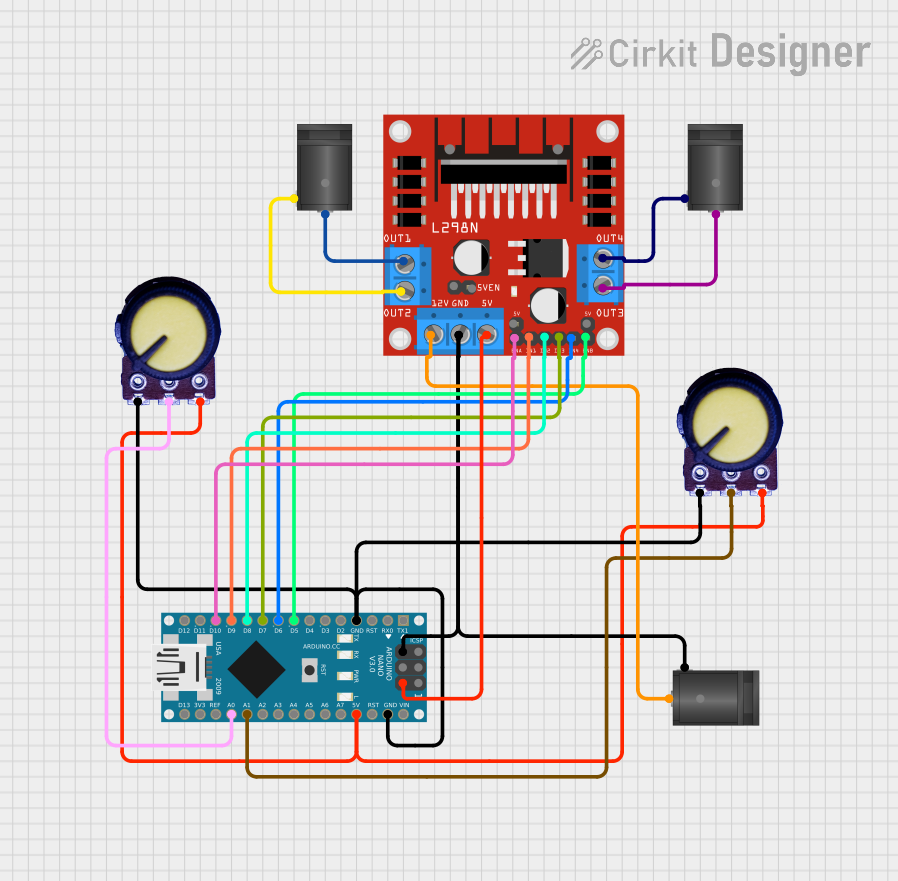

Circuit

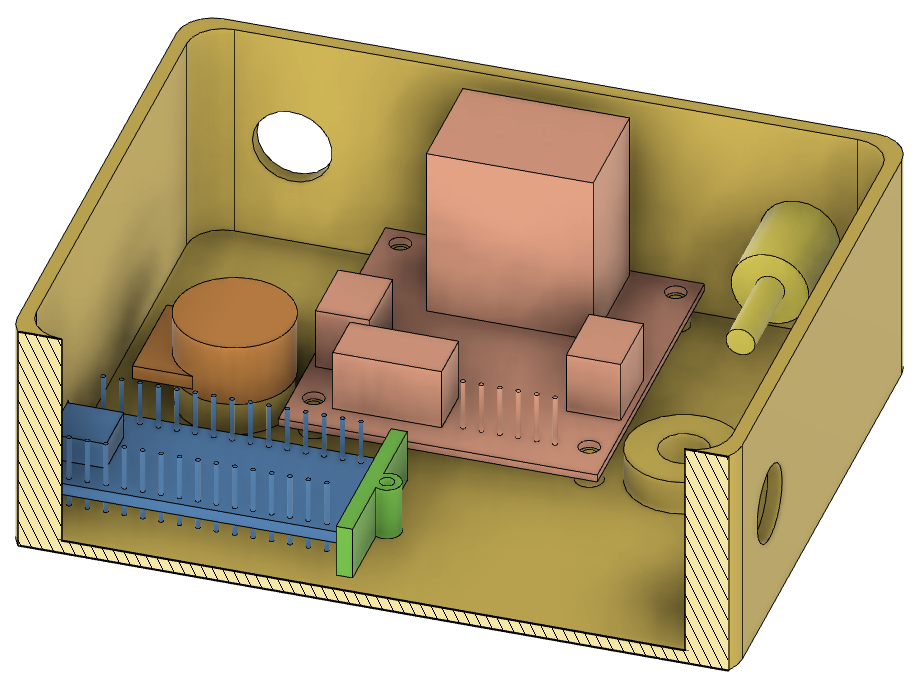

Case
3D printable STL files are available for download: STL files
Arduino Code
/*
* Arduino Nano PWM Dual Train Controller
* This sketch reads values from two potentiometers connected to A0 and A1
* and uses these values to control the speed and direction of a motor via
* an L298N motor driver. The motor speed is controlled using PWM signals
* on pins D5 and D10, and the direction is controlled using digital signals
* on pins D6, D7, D8, and D9.
*/
// Pin definitions
const int potLeftPin = A0;
const int potRightPin = A1;
const int enaPin = 10;
const int in1Pin = 9;
const int in2Pin = 8;
const int in3Pin = 7;
const int in4Pin = 6;
const int enbPin = 5;
void setup() {
// Initialize serial communication
Serial.begin(9600);
// Set motor control pins as outputs
pinMode(enbPin, OUTPUT);
pinMode(enaPin, OUTPUT);
pinMode(in1Pin, OUTPUT);
pinMode(in2Pin, OUTPUT);
pinMode(in3Pin, OUTPUT);
pinMode(in4Pin, OUTPUT);
}
void loop() {
// Read potentiometer values
int potLeft = analogRead(potLeftPin);
int potRight = analogRead(potRightPin);
// Map potentiometer values to PWM range
int pwmLeft = pow(potLeft - 512, 2) / 1024;
int pwmRight = pow(potRight - 512, 2) / 1024;
// Control motor speed and direction
analogWrite(enaPin, pwmLeft);
analogWrite(enbPin, pwmRight);
// Set motor direction based on potentiometer values
if (potLeft < 512) {
digitalWrite(in1Pin, LOW);
digitalWrite(in2Pin, HIGH);
} else {
digitalWrite(in1Pin, HIGH);
digitalWrite(in2Pin, LOW);
}
if (potRight < 512) {
digitalWrite(in3Pin, LOW);
digitalWrite(in4Pin, HIGH);
} else {
digitalWrite(in3Pin, HIGH);
digitalWrite(in4Pin, LOW);
}
// Print values to serial monitor for debugging
Serial.print("potLeft: ");
Serial.print(potLeft);
Serial.print(" PWMLeft: ");
Serial.print(pwmLeft);
Serial.print(" potRight: ");
Serial.print(potRight);
Serial.print(" PWMRight: ");
Serial.println(pwmRight);
// Small delay to stabilize readings
delay(100);
}
