Check the status with sudo mdadm --detail /dev/md0
/dev/md0:
Version : 1.2
Creation Time : Wed Sep 2 21:55:39 2015
Raid Level : raid5
Array Size : 878509056 (837.81 GiB 899.59 GB)
Used Dev Size : 292836352 (279.27 GiB 299.86 GB)
Raid Devices : 4
Total Devices : 4
Persistence : Superblock is persistent
Update Time : Sun Oct 4 07:35:23 2020
State : clean, degraded
Active Devices : 3
Working Devices : 3
Failed Devices : 1
Spare Devices : 0
Layout : left-symmetric
Chunk Size : 512K
Consistency Policy : resync
Name : plum:0 (local to host plum)
UUID : 4a462153:dde89a43:0a4dd678:451bb2b4
Events : 24024
Number Major Minor RaidDevice State
0 8 17 0 active sync /dev/sdb1
1 8 33 1 active sync /dev/sdc1
5 8 49 2 active sync /dev/sdd1
- 0 0 3 removed
4 8 65 - faulty /dev/sde1
Check which disks are which sudo lshw -class disk.
| Mount | Model | Description |
|---|---|---|
| /dev/sdb | ST9300603SS | Seagate Savvio 10 K.3 St9300603ss |
| MBE2073RC | Fujitsu MBE2073RC 73.5GB SAS Hard Drive | |
| MBE2073RC | Fujitsu MBE2073RC 73.5GB SAS Hard Drive | |
| /dev/sdc | ST9300603SS | Seagate Savvio 10 K.3 St9300603ss |
| /dev/sdd | ST300MM0006 | Seagate Enterprise Performance 10K HDD ST300MM0006 300 GB |
| /dev/sde | ST9300603SS | Seagate Savvio 10 K.3 St9300603ss |
The boot drive is a hardware RAID1 using the two 73GB disks. /var made up of the 300GB disks in a software RAID5 configuration.
The ST9300603SS is still available on Amazon but the newer 10k.5 generation equivalent the ST9300605SS is on a same day delivery and it’s cheaper as well!
Remove the disk
mdadm -r /dev/md0 /dev/sde1
This server does support hot plug but there were some zombie processes which I wanted to clear out and operationally a five minute outage would be fine.

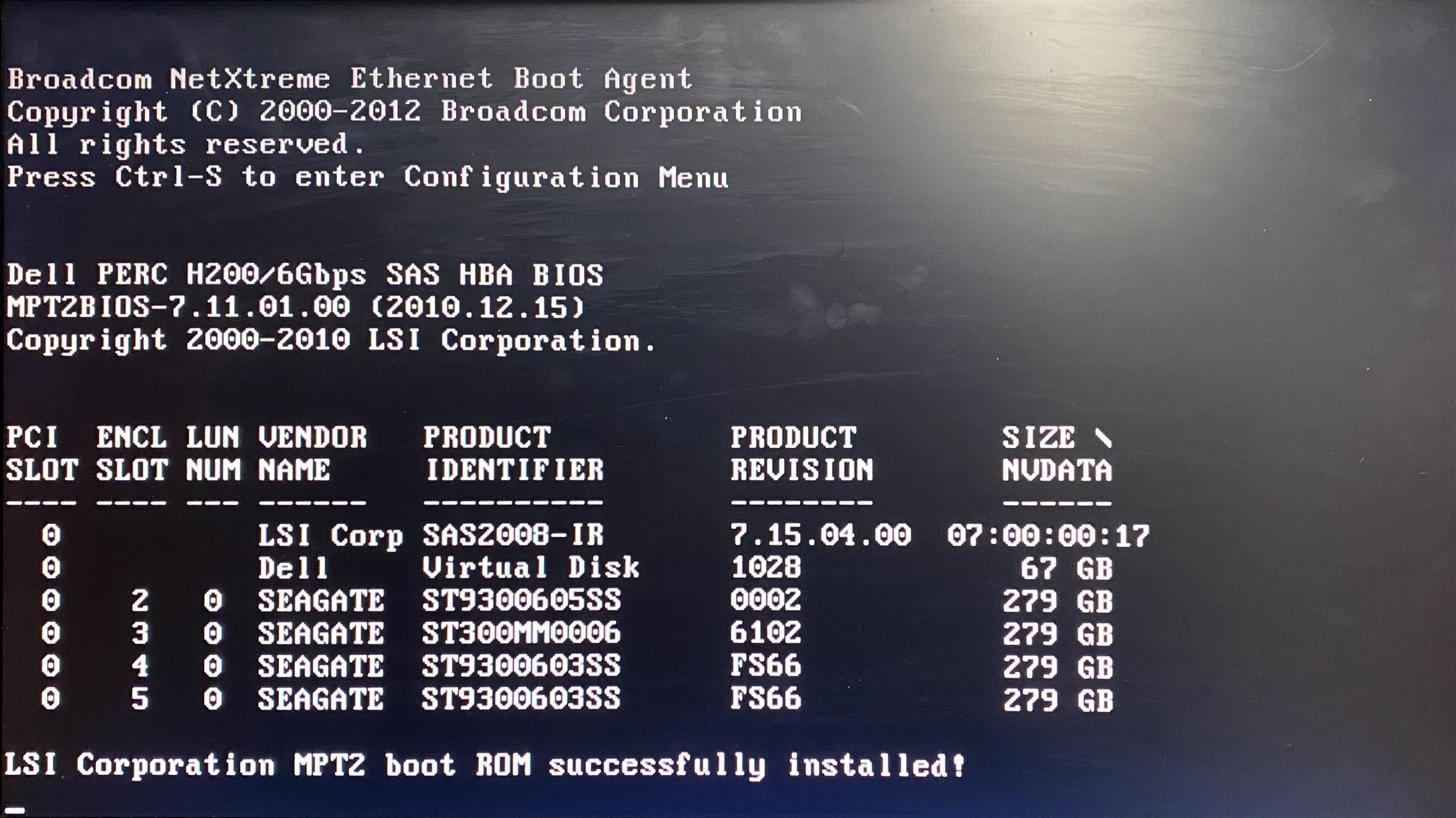

Shutdown the server and replace the disk. New disk (slot 2) during boot:
After the reboot copy the partition table from one of the existing disks over to the new disk.
sfdisk -d /dev/sdb | sfdisk /dev/sde
Add the new disk into the array
mdadm /dev/md0 -a /dev/sde1
Monitor the rebuild process
watch -n 60 cat /proc/mdstat
